PRECAST DRAINAGE

U-DITCH

Precast concrete drainage channel for infrastructure, industrial and site development applications.

01 / PRODUCT RANGE

STANDARD SECTIONS

Select a nominal internal section. External dimensions and technical data are shown alongside each size.

400 × 400 × 1200External: 600 × 500 × 1200 mmConcrete K350→

600 × 600 × 1200External: 800 × 700 × 1200 mmConcrete K350→

600 × 700 × 1200External: 800 × 800 × 1200 mmConcrete K350→

600 × 800 × 1200External: 800 × 900 × 1200 mmConcrete K350→

800 × 800 × 1200External: 1000 × 900 × 1200 mmConcrete K350→

800 × 1000 × 1200External: 1000 × 1100 × 1200 mmConcrete K350→

1000 × 1000 × 1200External: 1240 × 1120 × 1200 mmConcrete K350→

1000 × 1200 × 1200External: 1440 × 1320 × 1200 mmConcrete K350→

1000 × 1500 × 1200External: 1740 × 1620 × 1200 mmConcrete K350→

1200 × 1200 × 1200External: 1440 × 1320 × 1200 mmConcrete K350→

1500 × 1500 × 1200External: 1800 × 1650 × 1200 mmConcrete K350→

02 / TECHNICAL SPECIFICATION

DIMENSIONS AT A GLANCE

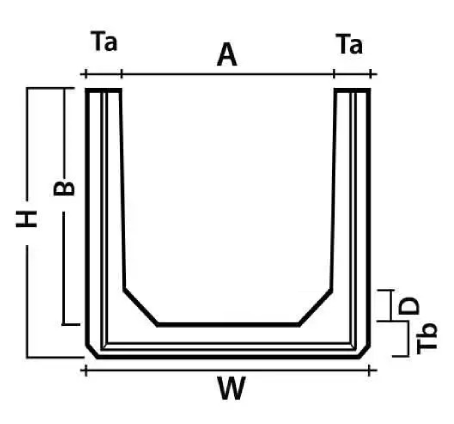

UKURAN U-DITCH	A	B	H	W	L	Ta	Tb	D	BERAT (kg)
UD 400 x 400	400	400	500	600	1200	100	100	100	≈442
UD 600 x 600	600	600	700	800	1200	100	100	100	615
UD 600 x 700	600	700	800	800	1200	100	100	100	≈678
UD 600 x 800	600	800	900	800	1200	100	100	100	≈737
UD 800 x 800	800	800	900	1000	1200	100	100	100	800
UD 800 x 1000	800	1000	1100	1000	1200	100	100	100	≈914
UD 1000 x 1000	1000	1000	1120	1240	1200	120	120	120	≈1189
UD 1000 x 1200	1000	1200	1320	1440	1200	120	120	120	≈1331
UD 1000 x 1500	1000	1500	1620	1740	1200	120	120	120	≈1543
1200 x 1200	1200	1200	1320	1440	1200	120	120	120	~1401 kg	K350	To be verified	To be calculated
1500 × 1500 mm	1800 × 1800 mm	1200 mm	K350	To be verified	To be calculated

UKURAN U-DITCH	A	B	H	W	L	Ta	Tb	D	BERAT kg
UD 400 x 400	400	400	500	600	1200	100	100	100	≈442
UD 600 x 600	600	600	700	800	1200	100	100	100	615
UD 600 x 700	600	700	800	800	1200	100	100	100	≈678
UD 600 x 800	600	800	900	800	1200	100	100	100	≈737
UD 800 x 800	800	800	900	1000	1200	100	100	100	800
UD 800 x 1000	800	1000	1100	1000	1200	100	100	100	≈914
UD 1000 x 1000	1000	1000	1120	1240	1200	120	120	120	≈1189
UD 1000 x 1200	1000	1200	1320	1440	1200	120	120	120	≈1331
UD 1000 x 1500	1000	1500	1620	1740	1200	120	120	120	≈1543
UD 1200 x 1200	1200	1200	1320	1440	1200	120	120	120	≈1401
UD 1500 x 1500	1500	1500	1650	1800	1200	150	150	150	2195

Values marked ≈ are engineering estimates and should be confirmed by production weighing before final publication.

03 / SECTION & REINFORCEMENT

ENGINEERED AROUND THE SECTION.

U-Ditch cross-section drawings for each size, showing internal and external dimensions, wall and base thickness, reinforcement arrangement, concrete cover and lifting details will be provided upon request.

04 / MANUFACTURING & QUALITY

CONSISTENCY FROM MOULD TO DISPATCH

01 Mould preparation — dimensional and surface checks before production.

02 Reinforcement — reinforcement cage prepared to the approved production drawing.

03 Casting & compaction — K350 concrete placed and compacted under controlled production.

04 Curing & demoulding — units handled after required concrete strength is achieved.

05 Final inspection — dimensions, surface condition and identification checked prior to dispatch.

TECHNICAL DATA & ENQUIRY

Technical drawings, reinforcement details and project-specific requirements can be provided with the product enquiry.
